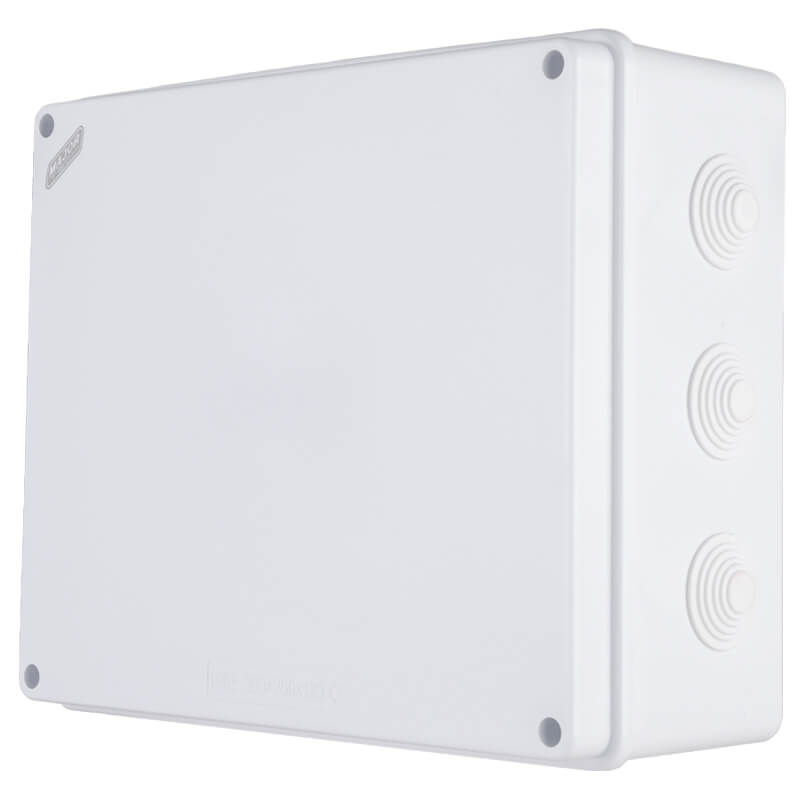

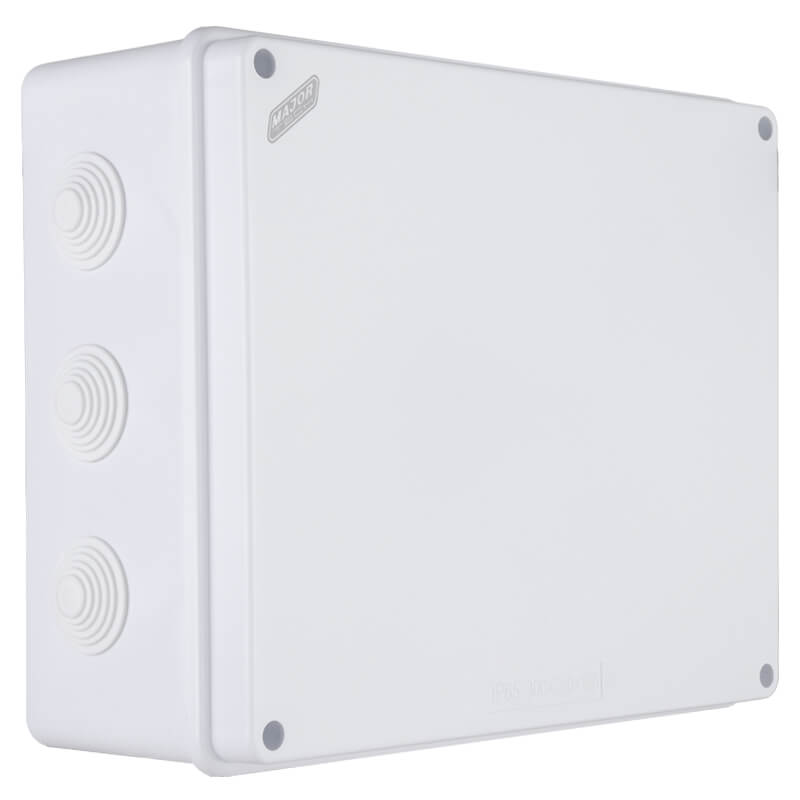

IP65 Rectangular Junction Box with Rubber Glands | 300mm x 250mm x 120mm | IK08 Rated

The VETi VJ302512R is a robust, rectangular junction box engineered to provide superior protection for electrical connections in both indoor and outdoor environments. With an IP65 ingress protection rating, this enclosure is designed to shield sensitive wiring from dust and moisture, ensuring long-term reliability for your electrical installations.

Constructed from high-quality, non-flammable ABS plastic, this junction box offers excellent durability and electrical insulation. It is further reinforced with an IK08 impact resistance rating, providing strong protection against mechanical damage in demanding conditions. The unit features twelve holes equipped with 36mm rubber stepped glands, allowing for flexible and secure cable entry. Fully compliant with international standards, including IEC 60529 and IEC 60670, and manufactured under the ISO 9001 quality management system, the VJ302512R is a trusted choice for residential, commercial, and industrial applications.

Note: For your safety, all electrical products must be installed by a qualified electrician.

Key Features

• Superior Ingress Protection: IP65-rated to effectively guard against dust and moisture.

• Impact Resistant: IK08-rated shell provides high-level defense against mechanical impacts and physical wear.

• Flexible Installation: Equipped with twelve 36mm rubber stepped glands for secure, customizable cable entry.

• Premium Material: Built from high-quality, non-flammable ABS plastic for added safety and longevity.

• Certified Quality: Compliant with IEC 60529 and IEC 60670 standards; holds CE, RoHS, HF, and IK testing certifications.

Technical Specifications

• SKU: VJ302512R

• Type: Rectangular Weatherproof Junction Box

• Dimensions: 300mm x 250mm x 120mm

• IP Rating: IP65

• IK Rating: IK08s

• Ambient Temperature: -5°C to 40°C

Delivery Between 1 - 4 Business Days
