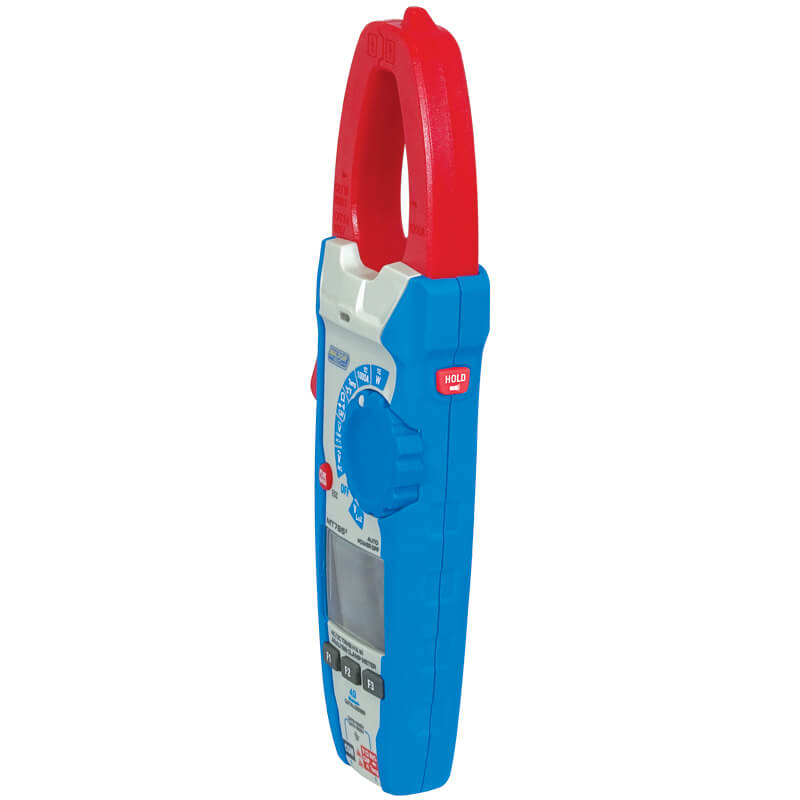

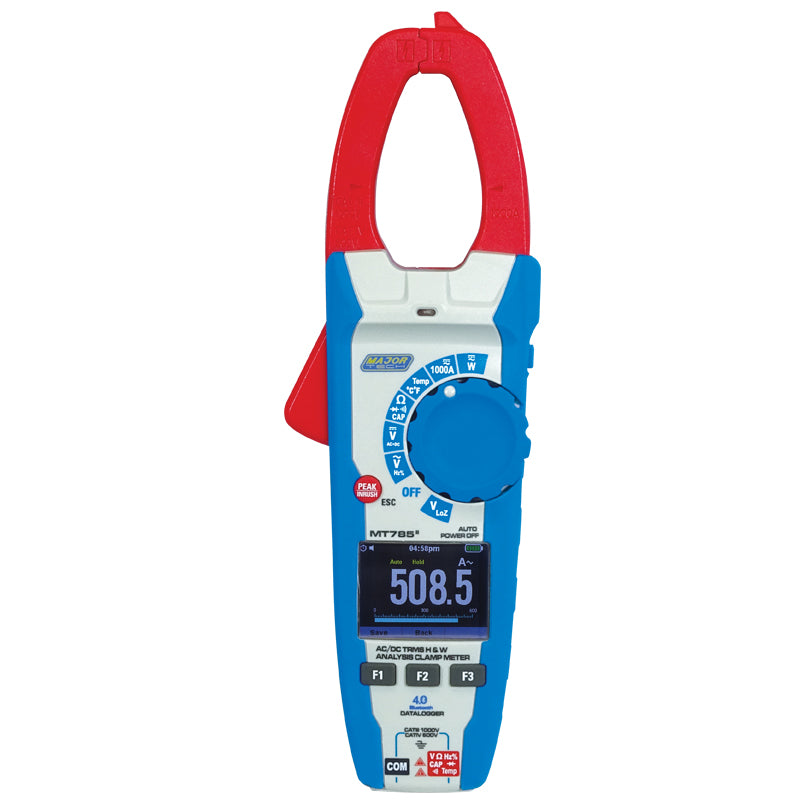

Major Tech 1500V DC 1000A AC/DC Harmonics & Waveform Analysis Clamp Meter – MT785

Major Tech 1500V DC 1000A AC/DC Harmonics & Waveform Analysis Clamp Meter – MT785

R 7,644.00
R 8,000.00 R 7,644.00
Sale Sold out
Shipping calculated at checkout.

Analyze power quality and high-voltage DC systems with the Major Tech 1500V DC Harmonics & Waveform (H&W) Analysis Clamp Meter (MT785). Designed for solar PV maintenance, renewable energy installations, and power quality auditing, this meter measures up to 1500V DC, TRMS 1000V AC, and 1000A AC/DC current. Featuring single-phase power analysis, harmonic measurement up to the 25th order, and a 6000-count TFT color display, it offers deep diagnostic insight into complex electrical loads.

Key Features:

  • High-Voltage & Heavy Current Capacity: Safely measures up to 1500V DC, 1000V TRMS AC, and AC+DC TRMS voltage up to 1000V, with current readings up to 1000A AC/DC.

  • Harmonics & THD Analysis: Measures AC voltage and current harmonics (1st to 25th) and Total Harmonic Distortion (THD%) up to 75Hz (1st to 8th above 75Hz).

  • Single-Phase Power & Energy Diagnostics: Calculates Active, Reactive, and Apparent Power, Power Factor, and AC/DC power/energy values.

  • LoZ Low-Impedance Mode: Features Low Impedance (LoZ) voltage testing to eliminate ghost voltages and prevent false readings.

  • INRUSH & Trend Capture: Captures motor inrush current spikes and records measurement profiles over time via the Trend Capture function.

  • Vibrant TFT Color Display: 6000-count TFT color LCD screen ensures sharp visual representation of waveform data and power measurements.

Detailed Description:

The Major Tech MT785 combines standard TRMS electrical clamp measurements with advanced power quality logging. Purpose-built for commercial solar microgrids, inverters, and industrial motor drives, it allows engineers to evaluate power quality parameters and diagnose harmonic distortion affecting system efficiency.

The instrument includes capacitance testing up to 6000µF, non-contact voltage (NCV) detection, continuous Peak Mode, Min/Max tracking, and a built-in work light for dark enclosures.

Technical Specifications

Feature / Attribute Specification
Brand Major Tech
Model / SKU MT785
Product Type High-Voltage AC/DC Harmonics & Power Analysis Clamp Meter
DC Voltage Range Up to 1500V DC
AC / AC+DC Voltage TRMS AC up to 1000V / AC+DC TRMS up to 1000V
Current Range Up to 1000A AC / DC
Jaw Capacity Ø33mm Cable Clamp
Display 6000-Count TFT Color LCD
Harmonics / THD Harmonics 1 - 25; THD% up to 75Hz 1 - 8 above 75Hz)
Power Measurements Active, Reactive, Apparent Power & Power Factor (Single Phase)
Capacitance Range Up to 6000µF
Special Functions LoZ Mode, INRUSH Current, Trend Capture, NCV, Flashlight, Peak Mode, Min/Max
Target Applications Renewable Energy, Solar PV Inverters, Power Quality Auditing, Heavy Industrial
