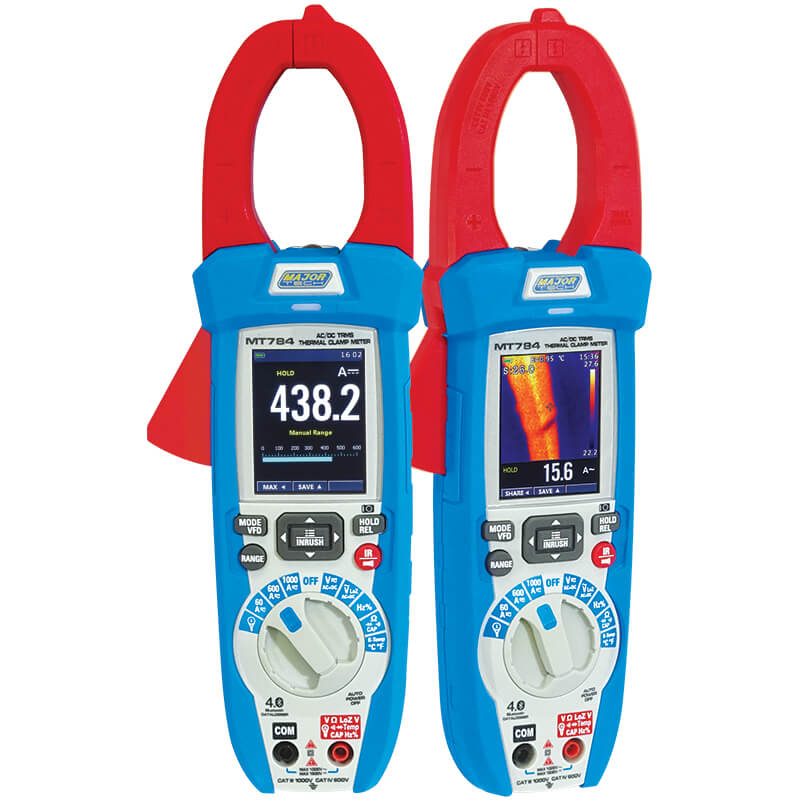

Major Tech 1500V DC 1000A AC/DC Thermal Imaging Clamp Meter – MT784

Major Tech 1500V DC 1000A AC/DC Thermal Imaging Clamp Meter – MT784

R 20,545.00
R 25,000.00 R 20,545.00
Sale Sold out
Shipping calculated at checkout.

Combine thermal imaging and high-voltage electrical diagnostics with the Major Tech 1500V DC Thermal Imaging Clamp Meter (MT784). Specifically built for renewable energy systems, solar PV installations, and heavy industrial maintenance, this advanced clamp meter measures up to 1500V DC, 1000V AC, and 1000A AC/DC current. Equipped with an integrated  pixel thermal imager, a 2.4" TFT color LCD, and Bluetooth 4.0 data logging, it allows technicians to locate thermal hot spots and measure electrical parameters simultaneously.

Key Features:

  • High-Voltage & Current Measurement: Safely tests up to 1500V DC, 1000V AC, and 1000A AC/DC current (expandable to 3000A AC with the optional MT740 flexible coil clamp).

  • Integrated Thermal Imager: Built-in $80\times80$ pixel thermal camera with a 50Hz image refresh rate captures real-time heat patterns from -20°C to 260°C.

  • 2.4" TFT Color Display: Vibrant 6000-count color display presents clear waveform metrics, thermal imagery, and measurement trends.

  • Advanced Electrical Testing: Features AC+DC TRMS voltage measurements (1000V), INRUSH current capture, frequency up to 10MHz, capacitance up to 100mF, and resistance to 60MΩ.

  • Data Logging & Trend Capture: On-board logging function records readings over time with Trend Capture for fast diagnostics and reporting.

  • Dual Temperature Inputs: Combines infrared thermal imaging with K-type thermocouple probe measurements ranging from -40°C to 1000°C.

Detailed Description:

The Major Tech MT784 combines a TRMS industrial clamp meter with a thermal camera into a single diagnostic unit. Designed for high-voltage solar farm installations, commercial electrical panels, and motor drives, it enables technicians to pinpoint overheating components, loose connections, and phase imbalances without contact before taking electrical measurements.

It includes non-contact voltage (NCV) detection, continuity and diode testing, time-stamped Max/Min/Average tracking, and a built-in work light/flashlight.

Technical Specifications

Feature / Attribute Specification
Brand Major Tech
Model / SKU MT784
Product Type Thermal Imaging AC/DC Clamp Meter
DC Voltage Range Up to 1500V DC
AC Voltage Range Up to 1000V AC / AC+DC TRMS 1000V
Current Range 1000A AC/DC (Up to 3000A AC with optional MT740 Flexible Clamp)
Jaw Capacity Ø37mm Cable Clamp
Display 2.4" TFT Color LCD (6000 Counts)
Thermal Imager Resolution (50Hz Frame Rate)
Thermal Temperature Range -20°C to 260°C
K-Type Temperature Range -40°C to 1000°C
Resistance / Capacitance Resistance to 60MΩ / Capacitance to 100mF
Special Functions INRUSH Current, Trend Capture Data Logging, NCV Detector, Flashlight, Max/Min/Avg with Time Stamp
Target Applications Solar PV Maintenance, Renewable Energy, Industrial High-Voltage Inspection
