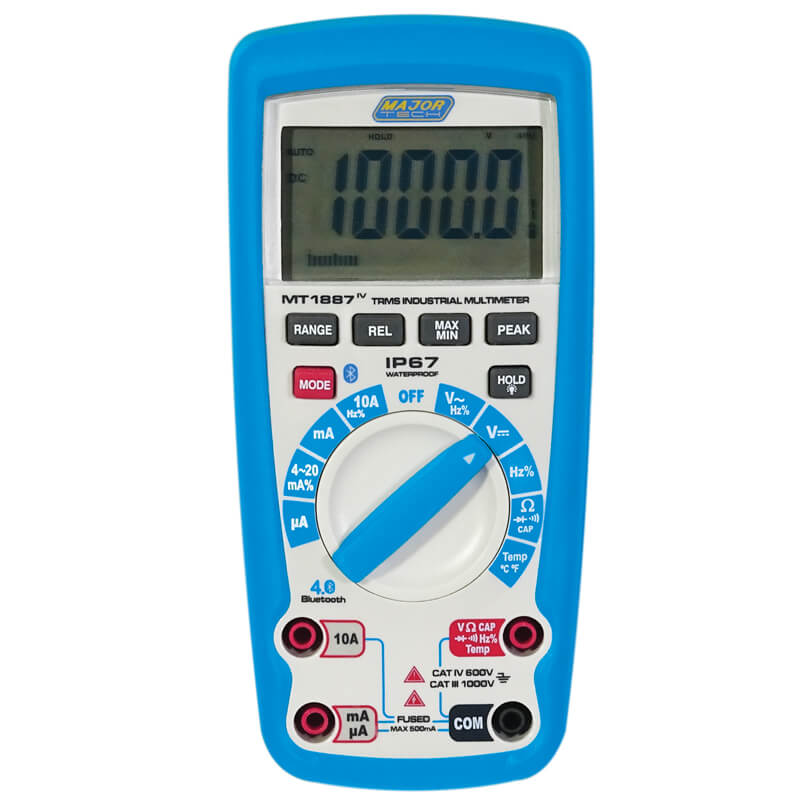

Major Tech 1500V DC IP67 True RMS Bluetooth Digital Multimeter – MT1887

Major Tech 1500V DC IP67 True RMS Bluetooth Digital Multimeter – MT1887

R 4,032.00
R 4,500.00 R 4,032.00
Sale Sold out
Shipping calculated at checkout.

Perform high-precision electrical diagnostics in demanding solar and industrial environments with the Major Tech 1500V DC IP67 True RMS Bluetooth Multimeter (MT1887). Purpose-built for renewable energy installations, utility maintenance, and process control, this heavy-duty industrial multimeter measures high DC voltages up to 1500V and AC voltages up to 1000V with True RMS accuracy. Equipped with a high-resolution 40,000-count display, Bluetooth 4.0 data logging, and process loop testing, it offers complete diagnostic capability for high-voltage systems.

Key Features:

  • High-Voltage System Testing: Safely measures up to 1500V DC for commercial solar PV arrays and 1000V AC for industrial distribution.

  • High-Resolution 40,000-Count Display: Digital LCD screen features a 41-segment analogue bargraph for tracking precise electrical variations.

  • 4-20mA% Process Loop Measurement: Reads current loop signals with direct percentage displays for fast process calibration.

  • Wireless Data Logging: Connects via Bluetooth 4.0 for remote monitoring, data logging, and safety checks away from live high-voltage circuits.

  • Visual NCV Detection: Automatic Non-Contact Voltage (NCV) testing changes the LCD backlight to red when voltage is detected.

  • Wide-Range Environmental Testing: Measures temperature from -50°C to 1000°C alongside broad current capabilities from microamps ($\mu\text{A}$) up to 10A.

Detailed Description:

The Major Tech MT1887 is designed for extreme duty in solar farms, sub-stations, and harsh industrial environments. Featuring an IP67 dustproof and waterproof rating, it withstands demanding site conditions while providing continuous precision.

The meter includes advanced diagnostic modes such as Peak Hold, Relative Mode, Min/Max/Data Hold tracking, frequency measurements up to 100MHz, and capacitance up to 40mF.

Technical Specifications

Feature / Attribute Specification
Brand Major Tech
Model / SKU MT1887
Product Type High-Voltage TRMS Bluetooth Industrial Multimeter
DC Voltage Range Up to 1500V DC
AC Voltage Range Up to 1000V AC
Current Measurement AC & DC Micro Amps ($\mu\text{A}$) up to 10A
Display 40,000-Count LCD with 41-Segment Bargraph
Process Control 4-20mA% Process Loop Measurements with % Reading
Temperature Range -50°C to 1000°C
Capacitance / Frequency Capacitance to 40mF / Frequency to 100MHz
IP Rating IP67 Dust & Waterproof
Special Functions Bluetooth 4.0, Red Backlight NCV, Relative Mode, Peak, Min/Max/Hold, Auto Power Off
Target Applications Solar PV Maintenance, Renewable Energy, Industrial Process Control
