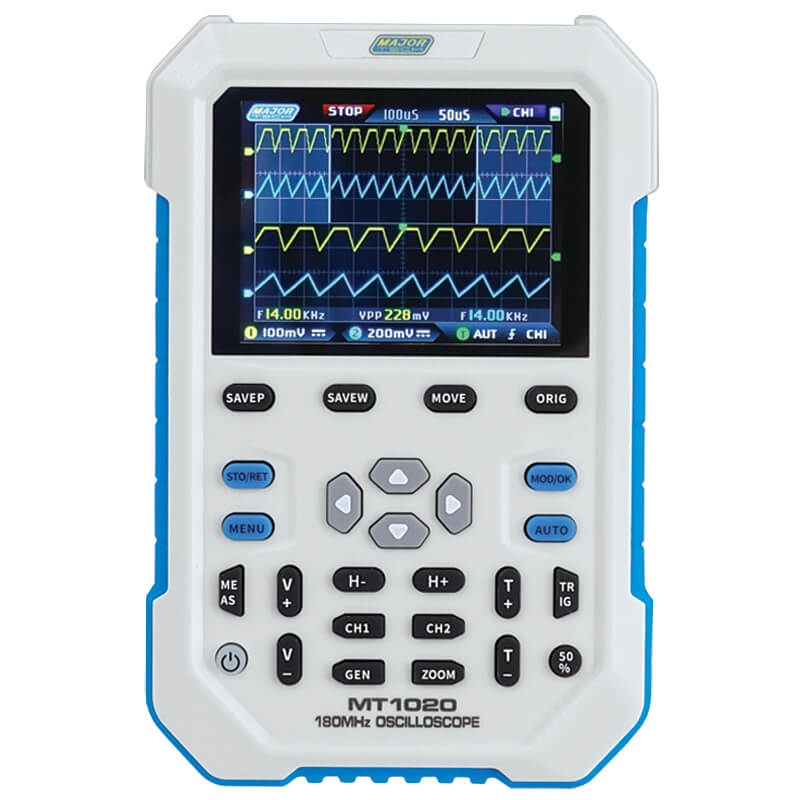

Major Tech 180MHz Dual Channel Handheld Oscilloscope & DDS Signal Generator – MT1020

Diagnose high-speed waveforms and generate test signals in the field with the Major Tech 180MHz Dual Channel Oscilloscope (MT1020). Built for electronic engineers, circuit technicians, and industrial field maintenance, this handheld diagnostic instrument combines a 180MHz dual-channel digital storage oscilloscope with a built-in DDS function signal generator. Featuring a fast 500MS/s real-time sampling rate, zoom time base, and rapid 50,000wfm/s waveform refresh rate, it delivers benchtop-level analysis in a portable form factor.

Key Features:

• Dual-Channel High Bandwidth: Features a 180MHz bandwidth with a 500MS/s real-time sampling rate for high-frequency signal troubleshooting.

• Integrated DDS Signal Generator: Built-in signal generator produces 14 distinct functional signal waveforms for comprehensive circuit injection and testing.

• 20MHz Hardware Bandwidth Limit: Includes a selectable 20MHz bandwidth filter to eliminate high-frequency noise for cleaner low-frequency signal viewing.

• Fast Waveform Refresh & Zoom Time Base: Captures transient anomalies with up to 50,000wfm/s refresh rate and a ZOOM time base for detailed digital protocol analysis.

• One-Button Auto Adjustment: Features quick adaptive triggering (25%, 50%, and 75%) that automatically adjusts 1VPP/1kHz signals in under 2 seconds.

• Custom Waveform & Image Storage: Saves up to 250 waveform datasets or 90 screenshots, plus an original chopping output function storing up to 500 custom signals.

• Rechargeable Battery Operation: Integrated 3000mAh lithium battery delivers up to 4 hours of continuous field operation.

Detailed Description:

The Major Tech MT1020 combines dual-channel waveform visualization with signal generation in a rugged handheld chassis. Designed for electronic circuit testing, automotive diagnostics, and field servicing, it offers three versatile trigger modes—Automatic, Single, and Normal—to capture continuous or single-shot events.

Its intuitive interface includes dedicated hardware controls for vertical scale, horizontal time base, trigger adjustments, and signal generation. With 1-key screenshot and waveform save functionality, technicians can quickly archive measurement data for post-test analysis and reporting.

Technical Specifications
