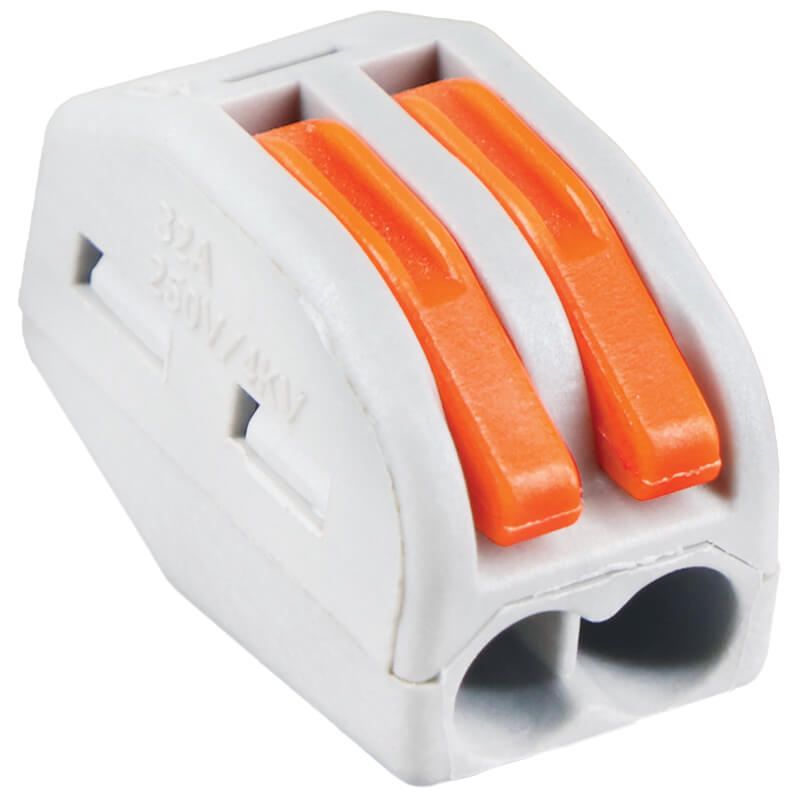

Major Tech 2-Pole Splicing Connector Block | 32A | 450V | Lever-Action Terminal

The Major Tech PCT-212P6 2-Pole Splicing Connector Block is a professional-grade clamping solution engineered for speed, reliability, and ease of use. Featuring a screwless connection design, this connector allows for rapid installations and includes an easy-release mechanism, providing contractors and electricians the flexibility to adjust connections when needed.

This 2-pole connector is ICE Standard Approved, offering high-level safety and performance with a 450V rated voltage, 32A rated current, and 4kV voltage resistance. Its ultra-compact 12.5 x 21.2 x 14.5mm dimensions make it an ideal choice for confined spaces where secure, high-performance splicing is required.

Note: All electrical equipment should be installed by a qualified electrician.

Key Features

• Rapid Installation: Screwless clamping design significantly reduces wiring time.

• Easy Release: Integrated lever-action allows for simple adjustments and re-use of the connector.

• Professional Reliability: ICE Standard Approved with 32A/450V ratings and 4kV voltage resistance.

• Space-Saving Footprint: Compact 12.5 x 21.2 x 14.5mm dimensions perfect for tight electrical boxes.

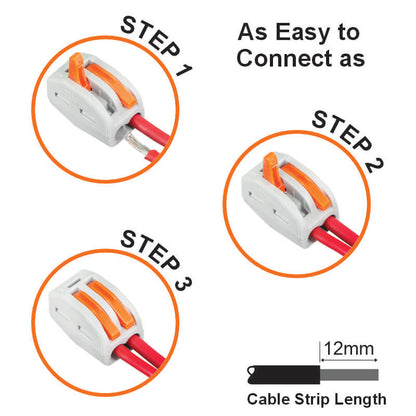

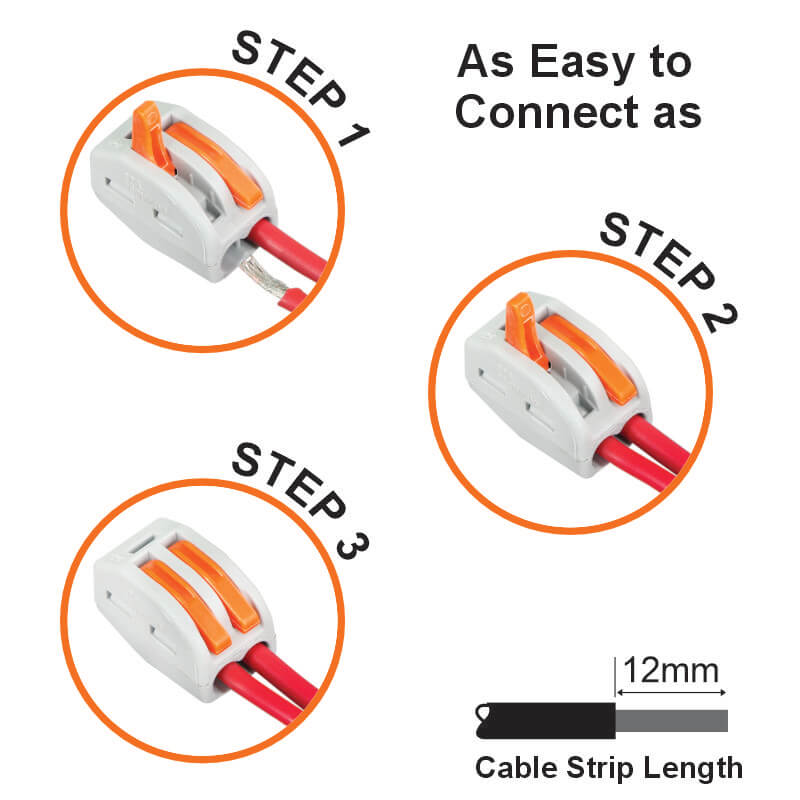

• Easy Preparation: Designed for a strip length of 11mm to 12mm.

Technical Specifications

• SKU: PCT-212P6

• Application: Splicing / Linking

• Poles: 2

• Rated Current: 32A

• Rated Voltage: 450V

• Strip Length: 11mm – 12mm
