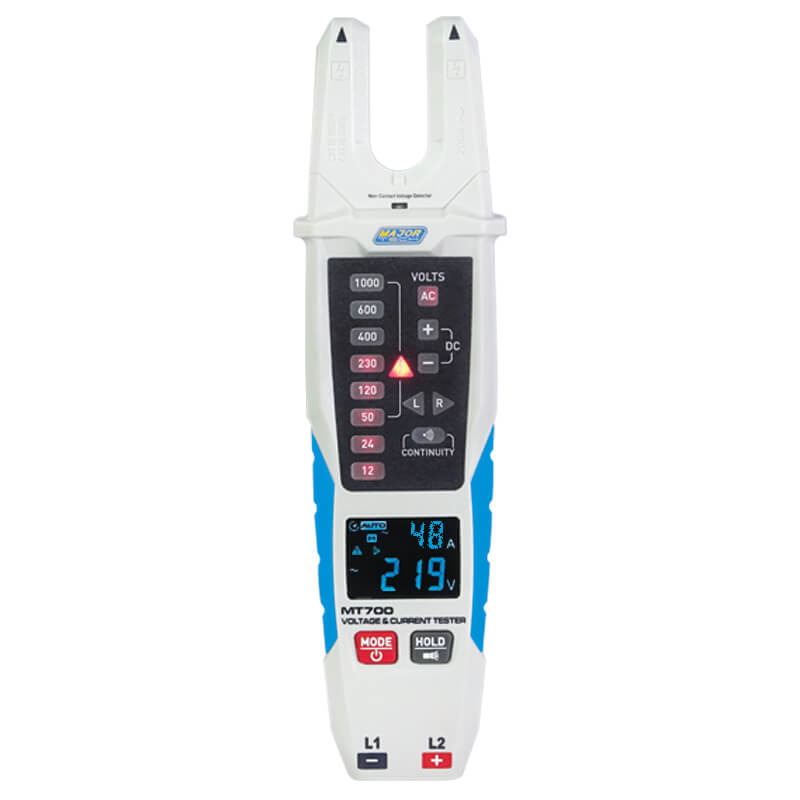

Major Tech 200A AC Open Jaw Voltage & Current Tester – MT700

Streamline daily electrical troubleshooting with the Major Tech 200A AC Open Jaw Voltage & Current Tester (MT700). Purpose-built for commercial electricians and maintenance technicians, this fork-style tester allows for fast, non-contact open-jaw current measurements alongside simultaneous dual-display voltage readings up to 1000V. Equipped with continuous LED voltage indication, rotary field phase testing, and a high-contrast negative LCD screen, it provides rapid electrical assessment in compact distribution panels.

Key Features:

• Open Jaw Sensor Design: Enables quick open-fork AC current testing on individual conductors up to Ø16mm without breaking the circuit.

• Simultaneous Voltage & Current Display: Concurrently displays real-time voltage and current values on a clear 2000-count negative LCD screen.

• Dual Voltage Indication: Features both numerical LCD readouts and stepped LED voltage level indicators ranging from 12V to 1000V AC/DC.

• Rotary Field Indication: Integrated phase rotation testing for quickly verifying three-phase motor wiring and supply orientation.

• Essential Electrical Diagnostics: Measures electrical resistance up to 2000Ω alongside a continuity buzzer and Data Hold function.

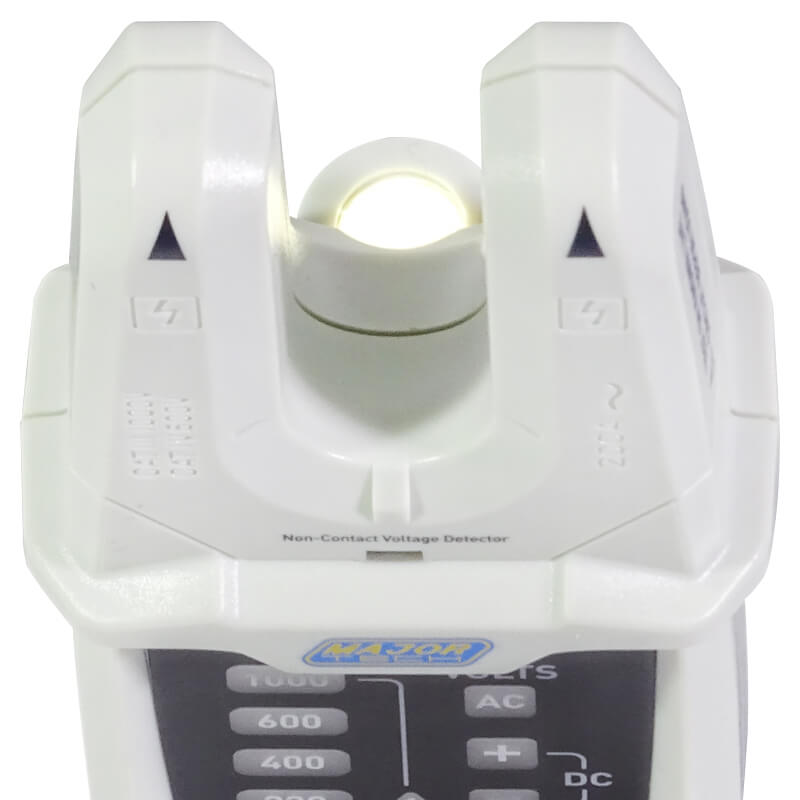

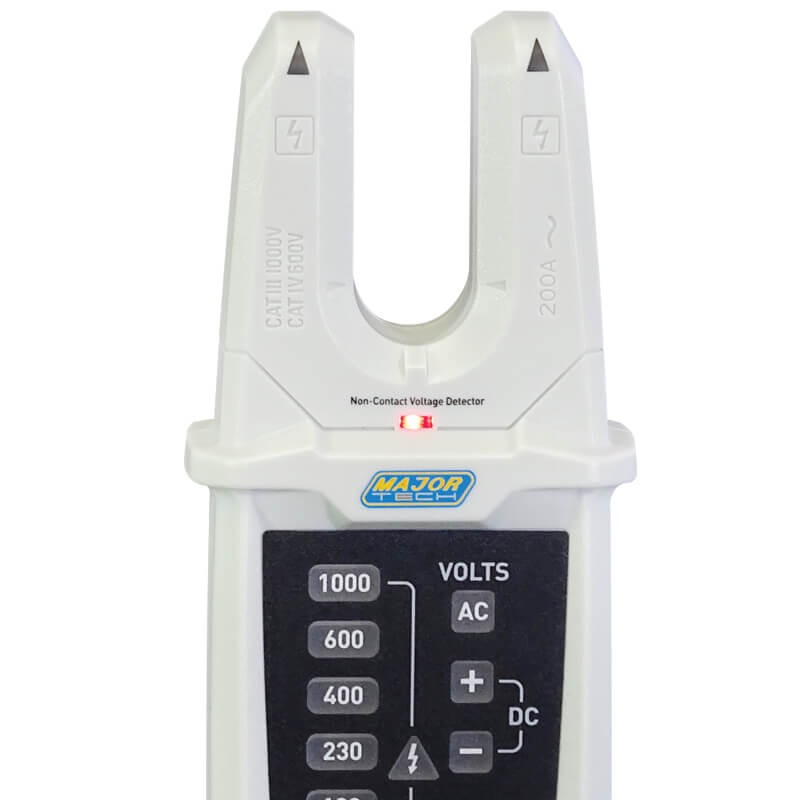

• Integrated Safety & Work Light: Built-in Non-Contact Voltage (NCV) detector and integrated flashlight ensure safe operation in dimly lit enclosures.

Detailed Description:

The Major Tech MT700 combines the speed of an open-jaw current tester with the functionality of a two-pole voltage tester. Its narrow fork profile effortlessly slides over tightly bunched wiring in crowded breaker boxes, distribution boards, and control panels.

The dual-display format provides immediate visual feedback, allowing operators to monitor voltage levels and load current at the same time. Coupled with Auto Power Off to extend battery life, the MT700 is an ideal daily tool for fast site diagnostics.

Technical Specifications
