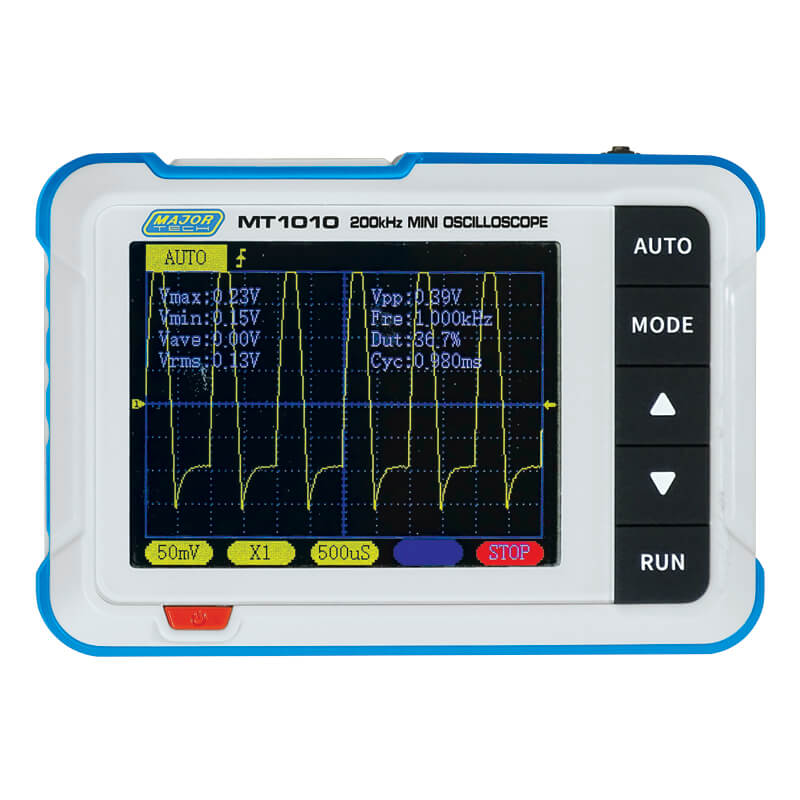

Major Tech 200kHz Handheld Mini Oscilloscope & Signal Generator – MT1010

Diagnose audio, low-frequency, and digital signal waveforms on the go with the Major Tech 200kHz Mini Oscilloscope (MT1010). Compact enough to fit in a pocket, this portable diagnostic unit combines a 200kHz digital scope capable of measuring signals up to 400V with a built-in DDS function signal generator. Featuring a clear color LCD display, ZOOM time base, and multi-trigger modes, it provides quick electrical and electronic troubleshooting for technicians, hobbyists, and field service agents.

Key Features:

• Ultra-Portable Mini Form Factor: Pocket-sized handheld oscilloscope designed for immediate field testing and fast diagnostics.

• 200kHz Bandwidth & High-Voltage Input: 200kHz bandwidth with a 2.5MS/s real-time sampling rate, safely handling voltage signals up to 400V.

• Integrated DDS Signal Generator: Built-in function generator outputs 14 distinct signal waveforms for signal injection and circuit testing.

• ZOOM Time Base: Enables zoom-in analysis of time bases to decode and inspect digital protocol waveforms.

• Three Flexible Trigger Modes: Equipped with Automatic, Single, and Normal trigger options to capture steady waveforms or transient signals.

• Rechargeable Battery: Built-in 1000mAh lithium battery provides up to 4 hours of continuous operation.

Detailed Description:

The Major Tech MT1010 offers standard digital storage oscilloscope functionality in a compact mini enclosure. Tailored for low-voltage electronics, automotive sensor analysis, audio system testing, and control circuit diagnostics, it features simple front-panel button navigation to lock onto signals instantly.

Its clear display continuously calculates critical waveform parameters, including peak-to-peak voltage ($V_{\text{pp}}$), maximum/minimum voltages ($V_{\text{max}}$/$V_{\text{min}}$), RMS voltage ($V_{\text{rms}}$), frequency, duty cycle, and cycle time.

Technical Specifications
