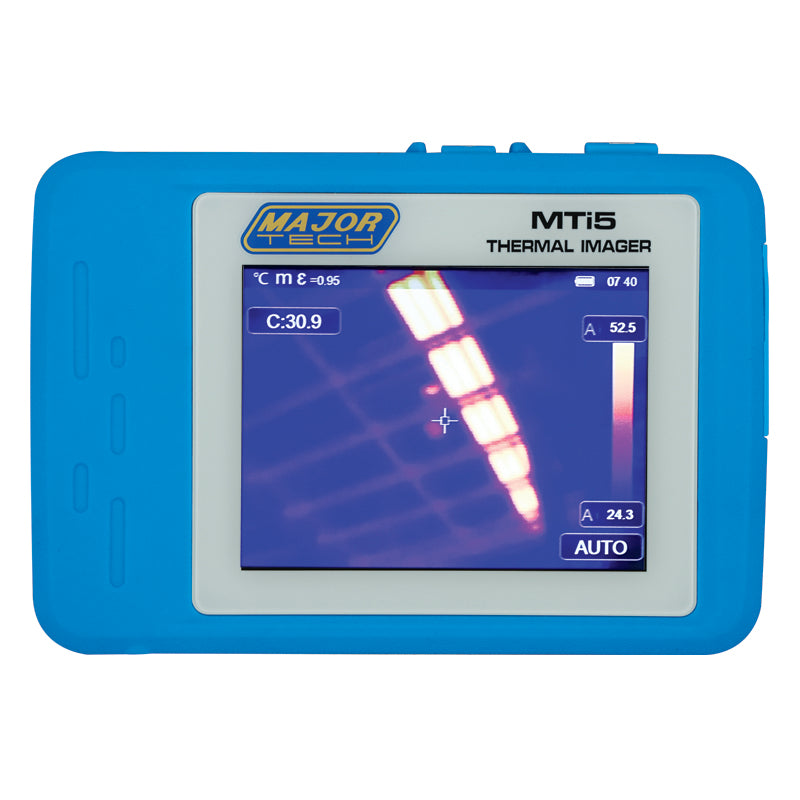

Major Tech 256 x 192 Pixel Pocket Thermal Imager – MTI5

Major Tech 256 x 192 Pixel Pocket Thermal Imager – MTI5

R 10,660.00
R 12,000.00 R 10,660.00
Sale Sold out
Shipping calculated at checkout.

Troubleshoot industrial systems, HVAC networks, and electrical components on the go with the Major Tech Pocket Thermal Imager (MTI5). Featuring a high-resolution 256 x 192 IR detector, ultra-fine thermal sensitivity (<0.04°C), and Wi-Fi streaming via the free Thermal-X App, this compact tool fits comfortably in your pocket while delivering professional-grade thermal inspection capabilities.

Key Features:

  • High-Resolution Thermal Detector: 256 x 192 pixel IR sensor delivers sharp detail across broad temperature ranges (-20°C to 150°C and 0°C to 550°C).

  • High Thermal Sensitivity: Detects subtle temperature differentials with thermal sensitivity under 40mK (<0.04°C at 30°C).

  • Wi-Fi Streaming & App Support: Real-time video and image streaming via Wi-Fi 802.11 using the free Thermal-X App on iOS and Android.

  • Versatile Imaging Modes: Includes IR Mode, Visual Mode, Picture-in-Picture, and Auto Fusion (blending IR and Visual spectrums).

  • Measurement Correction Parameters: Features customizable Emissivity, Reflected Temperature, Ambient Temperature, Atmospheric Humidity, Infrared, and Distance compensations.

  • Dual Media Data Storage: Includes an 8GB Micro SD card alongside 3.4GB internal eMMC storage, recording up to 60 minutes of 640x480 MPEG-4 video at 30fps.

  • Rugged Pocket Design: Drop tested up to 2m, bump tested to 25G, and vibration tested to 2G with up to 4 hours of continuous Li-ion battery runtime.

Detailed Description:

The Major Tech MTI5 bridges the gap between ultra-portable pocket convenience and high-performance thermal diagnostics. Its wide field of view (62° x 46.5°) allows technicians to quickly scan entire switchboards, mechanical shafts, and building envelopes from close range.

Equipped with comprehensive measurement corrections and image fusion tech, the MTI5 captures both visual and thermal data simultaneously, making report generation for clients and plant engineering teams seamless.

Technical Specifications

Feature / Attribute Specification
Brand Major Tech
Model / SKU MTI5
Product Type Pocket Thermal Imager
Thermal Resolution 256 x 192 Pixels
Field of View (FOV) / Min Focus 62° x 46.5° / 0.5m
Thermal Sensitivity <0.04°C at 30°C (86°F) / 40mK
Object Temperature Range -20°C to 150°C (-4°F to 302°F) | 0°C to 550°C (32°F to 1022°F)
Measurement Accuracy ±2°C (±3.6°F) or ±2% of reading
Imaging Modes IR Mode, Visual Mode, Picture in Picture, Auto Fusion (IR + Visual)
Storage Capacity 8GB Micro SD Card + 3.4GB Internal eMMC (up to 60 min 640x480 @ 30fps video)
Connectivity Wi-Fi 802.11 (Thermal-X App for iOS & Android)
Durability Ratings 2m Drop Tested, 25G Bump Tested, 2G Vibration Tested
Battery Life Up to 4 Hours Continuous Operation (Rechargeable Li-ion)
Target Applications Electrical Troubleshooting, Building Energy Audits, HVAC Diagnostics, Mechanical Inspections
