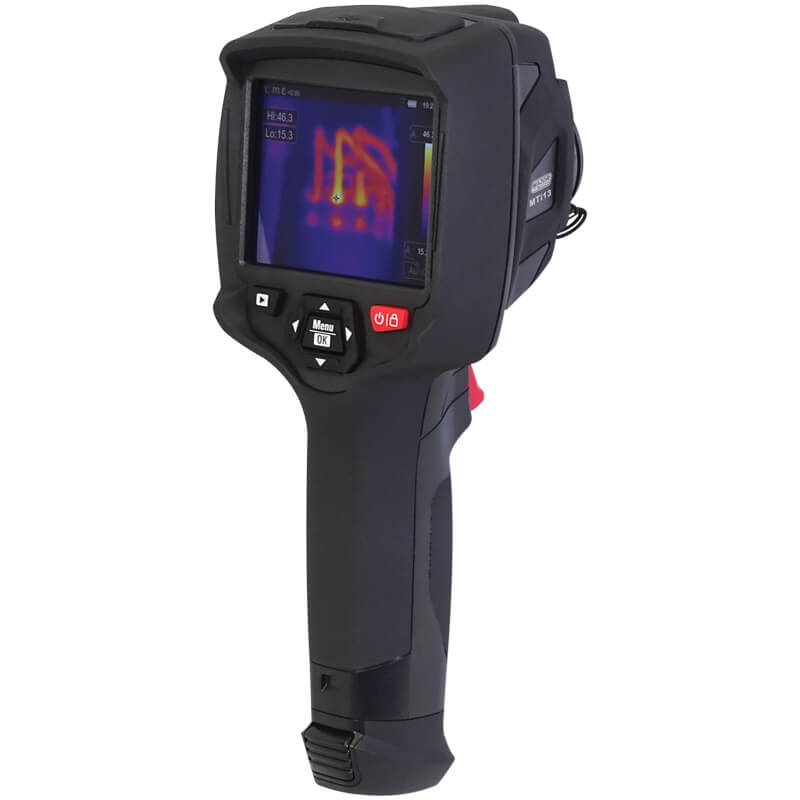

Major Tech 256 x 192px Thermal Imager – MTi13

Streamline industrial troubleshooting and electrical inspections with the Major Tech 256 x 192px Thermal Imager (MTi13). Designed for electrical engineers, plant maintenance teams, and HVAC technicians, this high-performance handheld camera pairs a crisp 256 x 192 pixel thermal detector with exceptional thermal sensitivity (<0.04°C). Featuring dual-spectrum IR and visual imaging, flexible USB-C or Wi-Fi data transfers via Thermview Pro Software, and a wide measuring range up to 550°C, it provides fast, reliable thermal diagnostics for demanding job sites.

Key Features:

• High-Detail IR Resolution: 256 x 192 pixel detector delivers clear thermal imaging across a broad temperature range of -20°C to 550°C (-4°F to 752°F).

• High Thermal Sensitivity: Thermal sensitivity of <0.04°C at 30°C (40mK) detects subtle heat variations and early-stage component defects.

• Thermview Pro Software Integration: Includes dedicated software for seamless data transfer and reporting to PC or mobile devices via Wi-Fi or USB Type-C.

• Real-Time Wi-Fi Streaming: Enables live video and thermal image streaming over Wi-Fi for remote viewing and field collaboration.

• Flexible Dual Spectrum Captures: Supports IR images, visual images, and simultaneous dual-capture storage.

• Custom Measurement Corrections: Features adjustable Emissivity and Reflected Temperature settings for reliable surface measurement accuracy.

• Dual Media & Video Recording: Equipped with an 8GB Micro SD card and 3.4GB internal eMMC storage, recording up to 60 minutes of 240x320 MPEG-4 video at 30fps.

• Extended Field Operation: Powered by a rechargeable Li-ion battery providing up to 4 hours of continuous operation with a 25Hz image frequency.

Detailed Description:

The Major Tech MTi13 combines high-resolution infrared performance with ergonomic pistol-grip handling. Its wide field of view (62° x 48°) and close 0.5m minimum focus distance make scanning wide electrical switchboards, motor bearings, and HVAC systems fast and efficient.

Equipped with 8 customizable color palettes (Iron, Rainbow, Grey, Grey Inverted, Brown, Blue-Red, Hot-Cold, and Feather), technicians can easily highlight temperature anomalies and quickly generate comprehensive client reports using the included Thermview Pro software.

Technical Specifications
