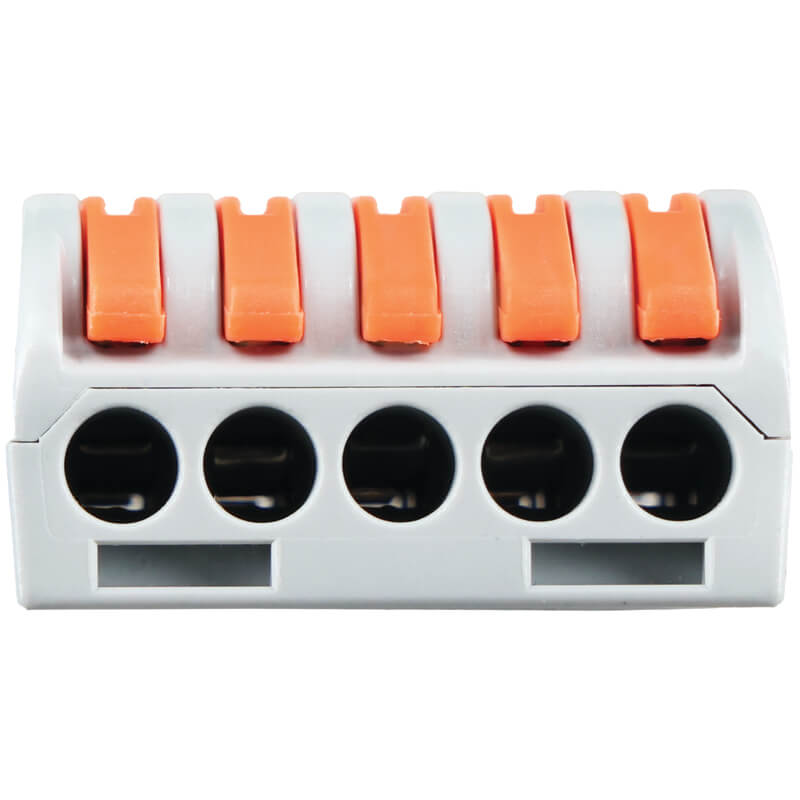

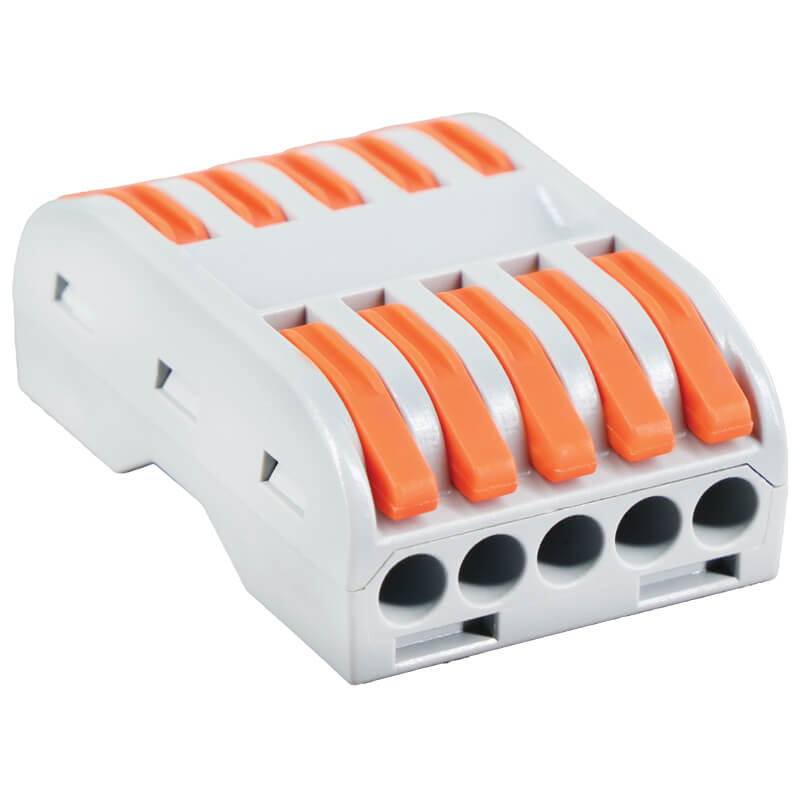

Major Tech 5-Pole Inline Interjoining Terminal Block | 32A | 450V | Screwless Connector

The Major Tech PCT-225P6 5-Pole Interjoining Connector Block is a professional-grade clamping solution engineered to maximize efficiency and speed in electrical installations. Featuring a screwless connection design, this block facilitates rapid wiring, while the integrated easy-release mechanism provides electricians and contractors the flexibility to make quick adjustments or re-use the connector when necessary.

This 5-pole connector is ICE Standard Approved, ensuring high-level safety and performance with a 450V rated voltage, 32A rated current, and 4kV voltage resistance. Its compact 28.10 x 39.30 x 14.30mm footprint makes it an excellent choice for inline or interjoining applications within confined electrical enclosures.

Note: For your safety, all electrical equipment must be installed by a qualified electrician.

Key Features

• Rapid Installation: Screwless clamping design significantly reduces time spent on wiring.

• Easy-Release Action: Integrated levers allow for simple connection adjustments or re-use.

• Professional Reliability: ICE Standard Approved with 32A/450V ratings and 4kV voltage resistance.

• Space-Saving Footprint: Compact dimensions (28.10 x 39.30 x 14.30mm) perfect for tight electrical boxes.

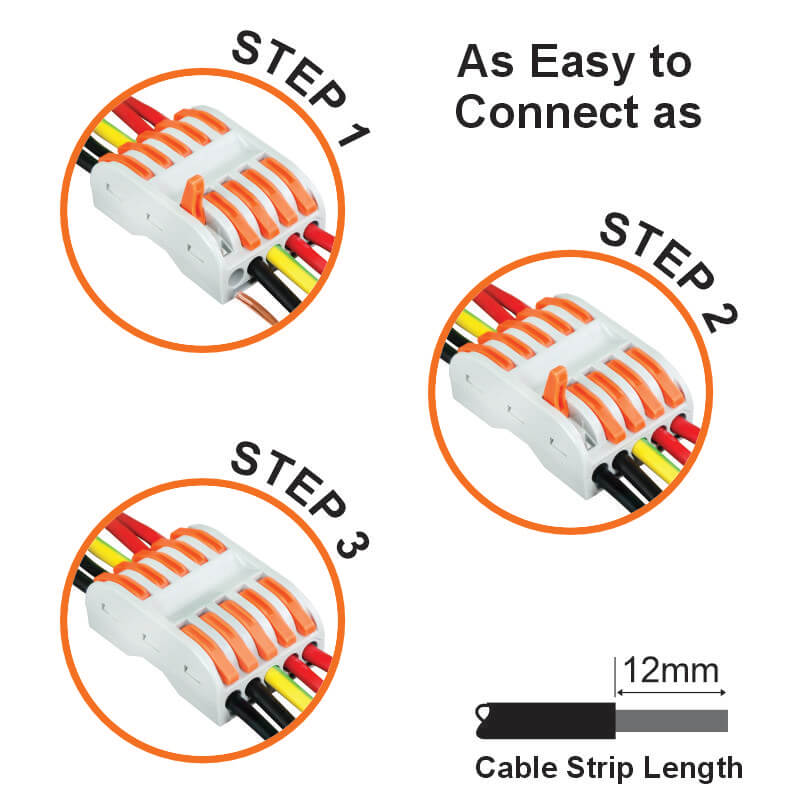

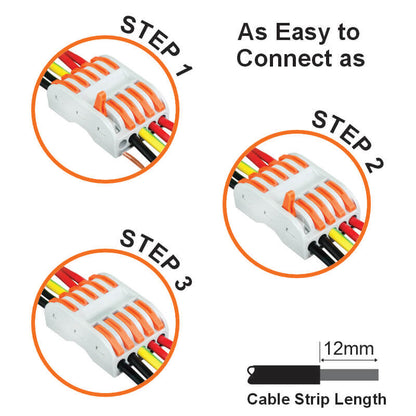

• Easy Preparation: Designed for a strip length of 11mm to 12mm.

Technical Specifications

• SKU: PCT-225P6

• Application: Inline / Interjoining

• Poles: 5

• Rated Current: 32A

• Rated Voltage: 450V

• Strip Length: 11mm – 12mm
