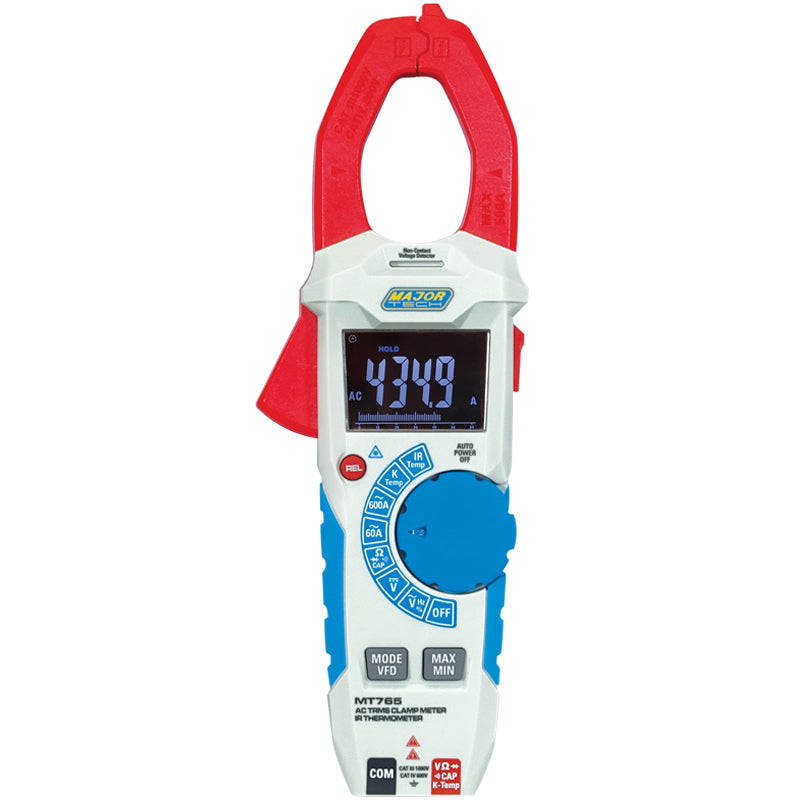

Major Tech 600A AC Clamp Meter & IR Thermometer – MT765

Streamline electrical and thermal diagnostics with the Major Tech 600A AC Clamp Meter with IR Thermometer (MT765). Purpose-built for HVAC technicians, field electricians, and maintenance teams, this diagnostic instrument features a 33mm jaw capacity, integrated infrared non-contact surface temperature measurement, and a high-contrast 6000-count negative LCD display with an analogue bargraph.

Key Features:

• 600A AC Clamp Measurement: Measures up to 600A AC current via a Ø33mm clamp jaw for heavy-duty load monitoring.

• Built-In Non-Contact IR Thermometer: Features an IR spot ratio of 4:1, measuring surface temperatures safely from -30°C to 350°C.

• Dual Temperature Inputs: Combines non-contact IR scanning with K-type thermocouple measurements ranging from -20°C to 1000°C.

• VFD Voltage Filtering: Includes a Variable Frequency Drive (VFD) mode to accurately measure noise-filtered AC/DC voltages up to 1000V.

• High-Contrast Display: Features a 6000-count inverted negative LCD screen supported by a built-in work light/flashlight for low-light environments.

• Multimeter Diagnostics: Measures capacitance up to 10mF alongside NCV (Non-Contact Voltage) detection, continuity buzzer, diode testing, and Max/Min/Data Hold functions.

Detailed Description:

The Major Tech MT765 delivers essential electrical clamp testing alongside non-contact thermal diagnostics. It enables operators to identify hot spots on electrical panels, busbars, and motor connections while taking real-time current measurements without needing a second tool.

Equipped with NCV detection for quick live-line checks and automated power-saving controls (Auto Power Off), the MT765 combines safety, precision, and durability for daily field work.

Technical Specifications
