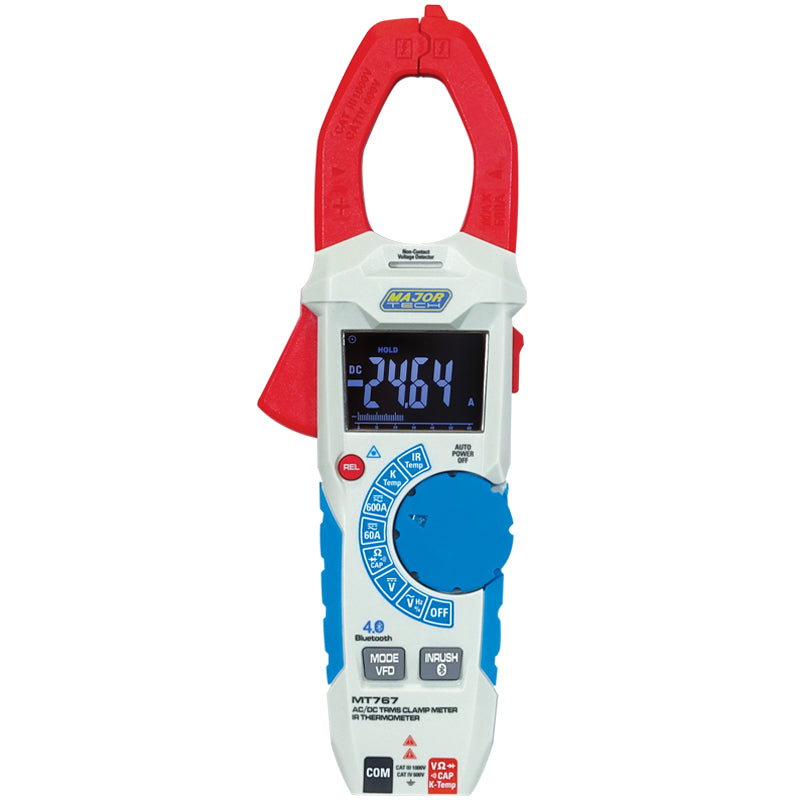

Major Tech 600A AC/DC Bluetooth Clamp Meter & IR Thermometer – MT767

Major Tech 600A AC/DC Bluetooth Clamp Meter & IR Thermometer – MT767

R 4,366.00
R 4,500.00 R 4,366.00
Sale Sold out
Shipping calculated at checkout.

Diagnose electrical systems and HVAC equipment with the Major Tech 600A AC/DC Bluetooth Clamp Meter with IR Thermometer (MT767). Engineered for maintenance technicians and industrial electricians, this instrument features a 33mm jaw capacity, INRUSH current measurement, non-contact infrared temperature scanning, and Bluetooth data connectivity. Its high-contrast negative LCD screen with analogue bargraph provides clear readability in any lighting condition.

Key Features:

  • 600A AC/DC Clamp & INRUSH Measurement: Measures up to 600A AC/DC current with INRUSH current capture for motor startup testing.

  • Built-In Non-Contact IR Thermometer: Features an integrated IR thermometer with a 4:1 distance-to-spot ratio for non-contact temperature readings from -30°C to 350°C.

  • Bluetooth 4.0 Connectivity: Wirelessly transfers real-time readings and data logs to smart devices.

  • VFD & High Voltage Capability: Measures AC/DC voltages up to 1000V and includes a VFD low-pass filter for accurate measurements on variable frequency drives.

  • High-Contrast Negative Display: 6000-count inverted LCD screen delivers clear visibility with built-in flashlight support.

  • Dual Temperature Inputs: Supports K-type thermocouple probe measurements from -20°C to 1000°C alongside non-contact IR scanning.

Detailed Description:

The Major Tech MT767 is a versatile diagnostic clamp meter that combines current clamp readings with non-contact infrared temperature measurement. It allows technicians to measure electrical load and surface heat rise on breakers, motors, and connections using a single tool.

Equipped with NCV (Non-Contact Voltage) detection, capacitance testing up to 100mF, continuity buzzer, diode testing, and Max/Min recording, the MT767 provides comprehensive diagnostic performance. Bluetooth connectivity simplifies reporting by streaming field data directly to companion mobile applications.

Technical Specifications

Feature / Attribute Specification
Brand Major Tech
Model / SKU MT767
Product Type Bluetooth AC/DC Clamp Meter & IR Thermometer
Current Range Up to 600A AC / DC (INRUSH Supported)
Voltage Range Up to 1000V AC / DC (Includes VFD Filter Mode)
Jaw Capacity Ø33mm Cable Clamp
Display 6000-Count Negative Backlit LCD
IR Temperature Range -30°C to 350°C (4:1 Spot Ratio)
K-Type Temperature Range -20°C to 1000°C
Capacitance Range Up to 100mF
Connectivity Bluetooth 4.0
Special Functions NCV Detector, Continuity & Diode Test, Max/Min, Data Hold, Built-In Flashlight, Auto Power Off
Target Applications HVAC Troubleshooting, Electrical Maintenance, Motor Startup Analysis
