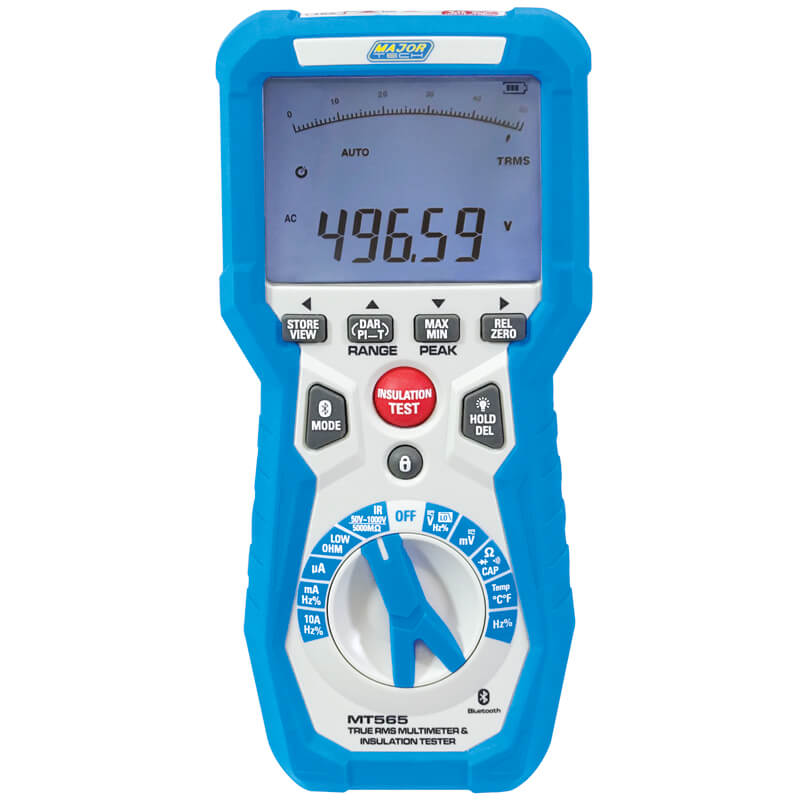

Major Tech Bluetooth Insulation Tester & True RMS Multimeter + FREE Water Bottle – MT565

Combine high-voltage insulation testing and precision digital multimeter diagnostics with the Major Tech Bluetooth Insulation Tester and Multimeter (MT565). Purpose-built for troubleshooting motors, generators, cables, and complex commercial switchgear, this True RMS unit delivers 5 insulation test ranges up to 1000V and measures insulation resistance up to 5GΩ. Equipped with a 50,000-count dual backlit LCD screen with analogue bargraph, low-pass filter (VFD), and wireless Bluetooth data logging, this promotional kit includes a FREE Major Tech water bottle.

Key Features:

• 5 Insulation Test Ranges: Offers 50V, 100V, 250V, 500V, and 1000V insulation test voltages measuring resistance up to 5GΩ with auto discharge.

• Advanced Motor Diagnostics: Evaluates Dielectric Absorption Ratio (DAR) and Polarization Index (PI) for deep insulation health analysis.

• VFD Low Pass Filter: Built-in low-pass filter accurately measures variable frequency drive (VFD) signals and complex motor drives.

• High-Precision 50,000 Count Display: Dual-display LCD with a fast analogue bargraph and backlight for precise measurement tracking.

• Bluetooth Data Logging: Wirelessly syncs live readings and stored memory to iOS and Android applications for fast report generation.

• Full-Featured Multimeter: Measures AC/DC voltage (1000V), AC/DC current (10A), frequency (50MHz), capacitance (5mF), and temperature (-50°C to 1200°C).

• Exclusive Gift Set: Includes a FREE Major Tech branded water bottle with purchase.

Detailed Description:

The Major Tech MT565 is an essential hybrid tool for industrial electricians and field engineers perform end-to-end preventative maintenance. By integrating standard True RMS multimeter functions with dedicated 1000V insulation testing, it eliminates the need to carry separate diagnostic instruments on-site.

Its rugged double-molded IP65 casing safeguards internal electronics against water and dust, while CAT IV 600V safety compliance ensures high-level protection. Paired with Bluetooth app connectivity, technicians can record trends, capture waveforms, and issue compliance documentation straight from the jobsite.

Technical Specifications

Note: FREE Delivery does not apply, please make arrangements prior to collecting in store.

Shipping: Allow For 1 - 3 Business Days Before Shipping.
