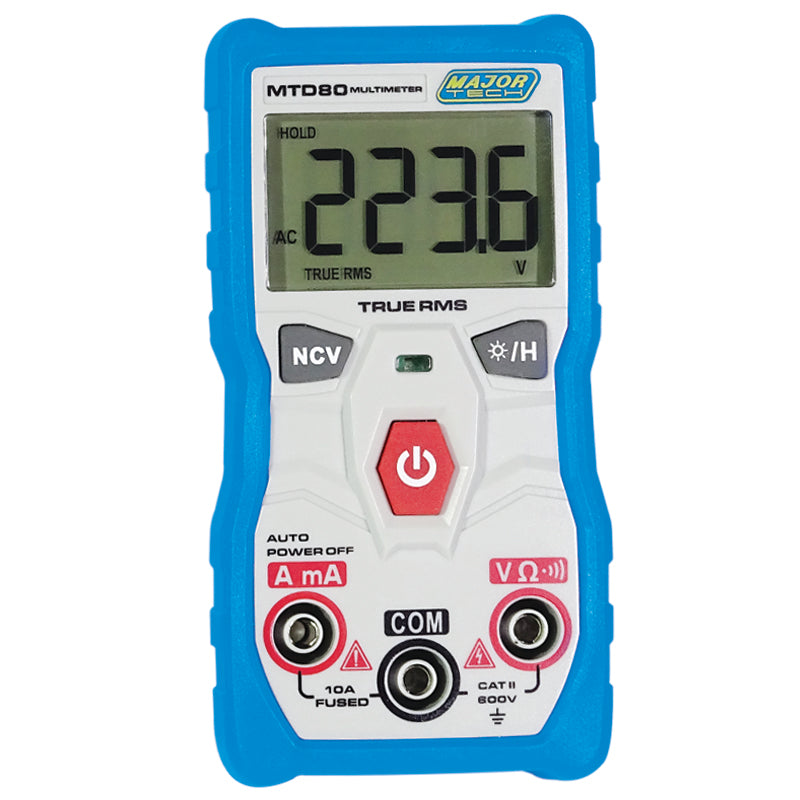

Major Tech Compact True RMS Auto Ranging Digital Multimeter - MTD80

Major Tech Compact True RMS Auto Ranging Digital Multimeter - MTD80

R 519.00
R 519.00
Sale Sold out
Shipping calculated at checkout.

The Major Tech MTD80 is a compact, high-precision True RMS auto-ranging digital multimeter designed for electricians, technicians, and DIY enthusiasts. Featuring a clear 4000-count backlit LCD display, it automatically detects and measures AC/DC voltage, AC/DC current, resistance, and continuity in Smart Mode. Built for safety and convenience, it includes a Non-Contact Voltage (NCV) detector, an integrated LED flashlight, and CAT III 600V safety rating.

Key Features:

  • True RMS Measurement: Provides accurate readings when measuring linear or non-linear AC loads.

  • Smart Auto-Ranging Mode: Automatically identifies DCV, ACV, resistance, and continuity for fast troubleshooting.

  • Non-Contact Voltage (NCV) Detection: Allows quick and safe voltage testing without direct contact.

  • 4000-Count Backlit Display: Ensures easy readability in dark workspaces alongside an integrated LED flashlight.

  • Compact & Rugged ABS Housing: Lightweight 140g pocket-sized design with durable ABS protection.

Technical Specifications

Measurement Ranges & Accuracy

Function Measurement Range Resolution Accuracy
DC Voltage 0.001mV – 1000V 0.1mV ±(0.5% + 3 Digits)
AC Voltage 0.001mV – 750V 0.1mV ±(1.0% + 3 Digits)
DC Current 0.1mA – 10A 0.01mA ±(2% + 4 Digits)
AC Current 0.1mA – 10A 0.01mA ±(1% + 3 Digits)
Resistance 0.001Ω – 40.00MΩ 0.01MΩ ±(0.5% + 3 Digits)
Capacitance 4.000nF – 200.0µF 0.1µF ±(3.5% + 4 Digits)
Frequency 99.99Hz – 9.999MHz 0.001MHz ±(0.1% + 2 Digits)
Duty Cycle 1% – 99% 0.1% ±(0.1% + 2 Digits)
AC Bandwidth 50Hz to 400Hz — —

General Hardware & Features

Specification Technical Detail
Brand / Model Major Tech (MTD80)
Display Type 4000 Count Backlit LCD
Safety Rating CAT III 600V
Voltage Detection Integrated NCV (Non-Contact Voltage) Detector
Testing Functions Diode Test, Battery Test, Continuity Buzzer
Meter Features Data Hold, Auto Power Off, Overrange Indication
Enclosure Material ABS Plastic
Power Source 2 x 1.5V AAA Batteries
Dimensions 120 x 62 x 33mm
Weight 140g
