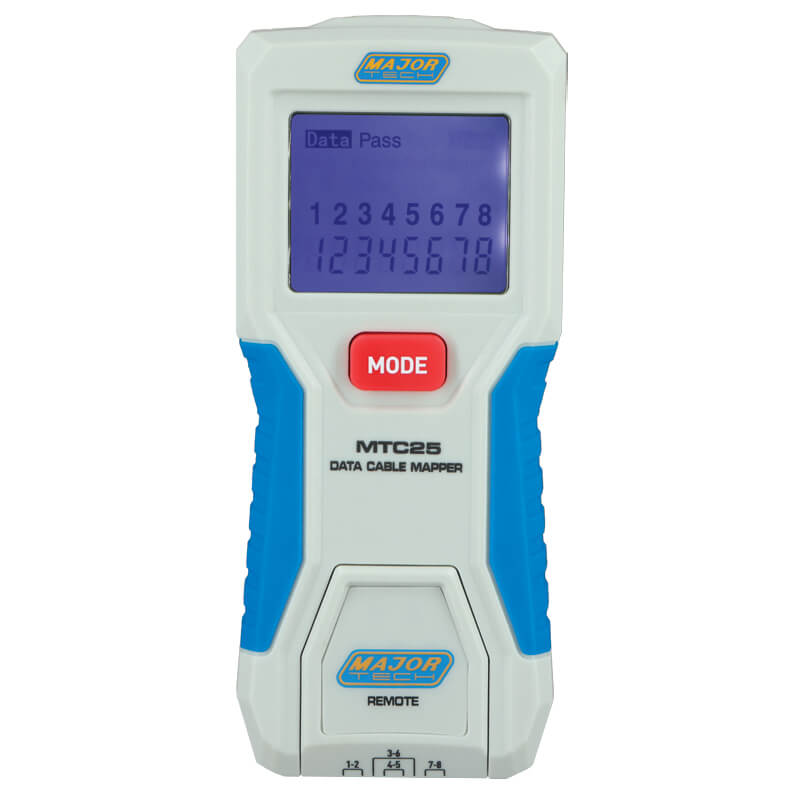

Major Tech Data Cable Mapper – MTC25

Major Tech Data Cable Mapper – MTC25

R 796.00
R 796.00
Sale Sold out
Shipping calculated at checkout.

Verify network cabling installations and diagnose connectivity issues with the Major Tech Data Cable Mapper (MTC25). Essential for network technicians, IT installers, and telecommunication contractors, this versatile cable mapper tests RJ45-terminated data cables, measures lengths up to 305 meters, and identifies wiring faults such as opens, shorts, miswires, and split pairs. Featuring a backlit LCD display, tone generator capabilities, and integrated voltage warnings, it ensures accurate installation, mapping, and troubleshooting of structured cabling systems.

Key Features:

  • Comprehensive Wiremap Testing: Tests RJ45-terminated data cables and displays clearly defined pass/fail pass-through wiring results.

  • Cable Length Measurement: Accurately measures cable runs up to 305 meters (1000 ft).

  • Advanced Fault Detection: Identifies Open, Short, Miswire, or Split-Pair wiring configuration errors.

  • Integrated Tone Generator: Traces network cables, individual wire pairs, and conductor wires using a selectable multiple-style tone generator (works with optional MTC40 Tone & Probe Generator).

  • Detachable Remote Unit: Includes a clip-in detachable remote unit for testing long-distance cable runs and installed wall outlets.

  • Safety & Shielding Checks: Features active voltage warnings, shielded cable detection, and automatic power-off with low battery indication.

Detailed Description:

The Major Tech MTC25 simplifies Ethernet and data cable testing by providing clear wiremap output directly on a large backlit LCD screen. Its ergonomic handheld housing stores the detachable remote unit directly at the base of the main unit for easy transport and single-user operation.

With built-in cable tracing tone capabilities and voltage detection to safeguard the instrument against live PoE or telephony lines, the MTC25 provides reliable diagnostic performance for data center management and commercial network installation projects.

Technical Specifications

Feature / Attribute Specification
Brand Major Tech
Model / SKU MTC25
Product Type Data Cable Mapper
Supported Connectors RJ45 Terminated Data Cables
Max Length Measurement Up to 305m
Fault Diagnostics Open, Short, Miswire, Split-Pair
Display Type Backlit LCD Wiremap Screen
Tone Generator Multiple-Style Tone (Compatible with MTC40 Probe)
Special Functions Voltage Warning, Shielded Detection, Auto Power Off
Remote Unit Detachable Main-Body Remote
Target Applications RJ45 Network Installations, Structured Cabling Audits, IT Maintenance
