Major Tech Digital 10A Micro-ohm Meter – MT986

Perform high-precision low-resistance and bonding tests with the Major Tech Digital 10A Micro-ohm Meter (MT986). Engineered for high-voltage electricians, substation maintenance engineers, quality control inspectors, and industrial plant technicians, this heavy-duty meter utilizes a 4-wire Kelvin test method with up to 10A constant test current. Measuring resistance from 0.001mΩ to 6kΩ, wire lengths up to 30,000m, and ambient temperatures, it includes Bluetooth 4.0 connectivity for seamless iOS and Android data logging.

Key Features:

• 4-Wire Kelvin Measurement: Utilizes a 4-wire test method to eliminate test lead resistance for high-accuracy low-resistance readings.

• High Constant Current: Delivers up to 10A constant current for testing low-resistance contact points, busbars, and switchgear.

• Wide Resistance Range: Measures ultra-low to high resistance spanning 0.001mΩ to 6kΩ.

• Wire Length & Temperature Diagnostics: Measures cable length up to 30,000 meters and ambient temperature from -5°C to 50°C.

• Bluetooth 4.0 Wireless Sync: Connects via Bluetooth to Android and iOS mobile devices for fast field data transfer and reporting.

• Memory & Logging Features: Stores up to 999 measurement data sets, featuring integrated time and date logging.

Detailed Description:

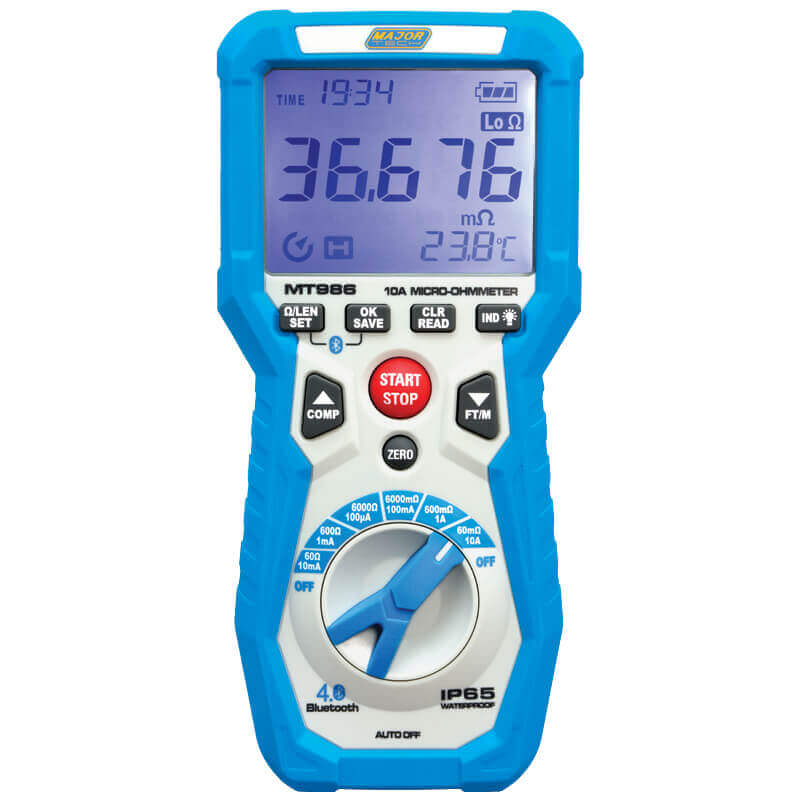

The Major Tech MT986 provides comprehensive low-resistance testing to assess the integrity of electrical connections, ground bonds, transformer windings, and circuit breaker contacts. Its high-contrast display shows resistance, wire length, temperature, and time simultaneously.

Equipped with an IP65 waterproof housing, 10A test current, and mobile Bluetooth connectivity, the MT986 delivers robust performance and precise diagnostic data for demanding field and industrial maintenance applications.

Technical Specifications
