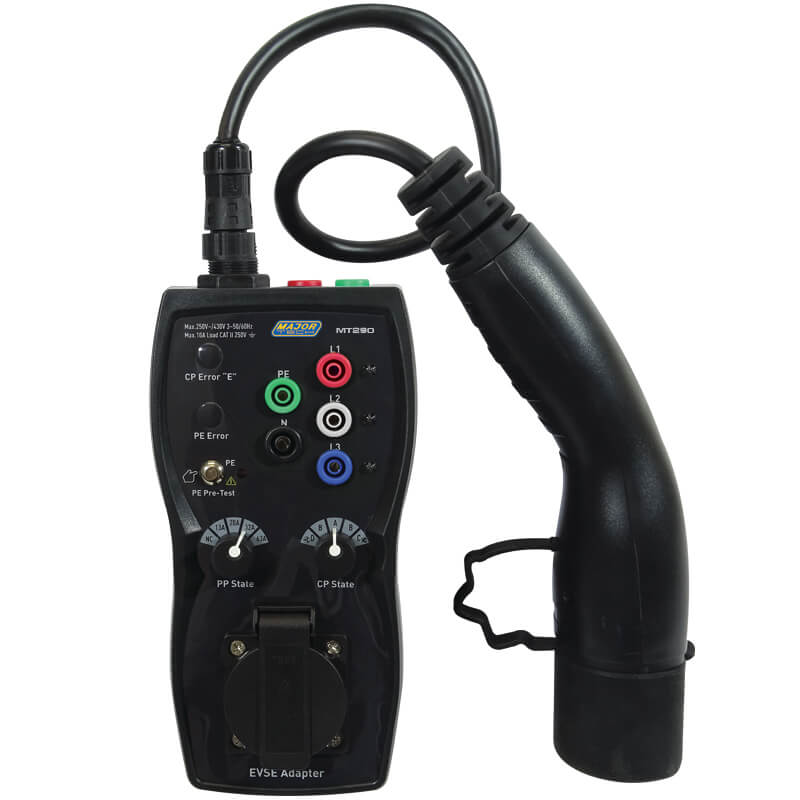

Major Tech Electric Vehicle Supply Equipment Adaptor – MT290

Safely test and verify Mode 3 EV charging stations with the Major Tech Electric Vehicle Supply Equipment Adaptor (MT290). Purpose-built for electrical contractors, EVSE installation engineers, and maintenance technicians, this adaptor simulates the presence of an electric vehicle to evaluate functional performance and electrical safety. Compatible with both Type 1 and Type 2 EV connections, it features dedicated measuring terminals, control pilot simulation, and fault diagnostics for comprehensive AC charging station assessments.

Key Features:

• Mode 3 EVSE Testing: Dedicated testing adaptor designed specifically for Mode 3 electric vehicle charging stations.

• Dual Connector Support: Features EV connections for both Type 2 and Type 1 charging interfaces.

• Direct Measuring Terminals: Outfitted with 4mm banana measuring terminals for L1, L2, L3, N, and PE for direct test instrument connections.

• Proximity & Control Pilot Simulation: Rotary switches allow simulation of Proximity Pilot (PP) State and Control Pilot (CP) State charging conditions.

• Fault Simulation: Includes CP Error "E" and PE Error (Earth Fault) simulation functions to test charger safety responses.

• Integrated Mains Outlet: Built-in mains socket allows connection of external loads to verify meter performance and current draw.

• Visual Phase Indicators: Separate LED lamps indicate live voltage presence for individual phases.

• PE Pre-Test Safety Feature: Integrates a PE Pre-test function to check for hazardous earth voltages before commencing tests.

Detailed Description:

The Major Tech MT290 acts as an vehicle emulator to safely interface test meters with AC EV charging stations. Capable of handling single-phase systems up to 250V and three-phase systems up to 430V, it provides full access to circuit conductors without disassembling the charging point.

Engineered to work seamlessly alongside multifuntion testers like the MT390, the MT290 enables complete certification, safety verification, and operational troubleshooting of EVSE infrastructure.

Technical Specifications
