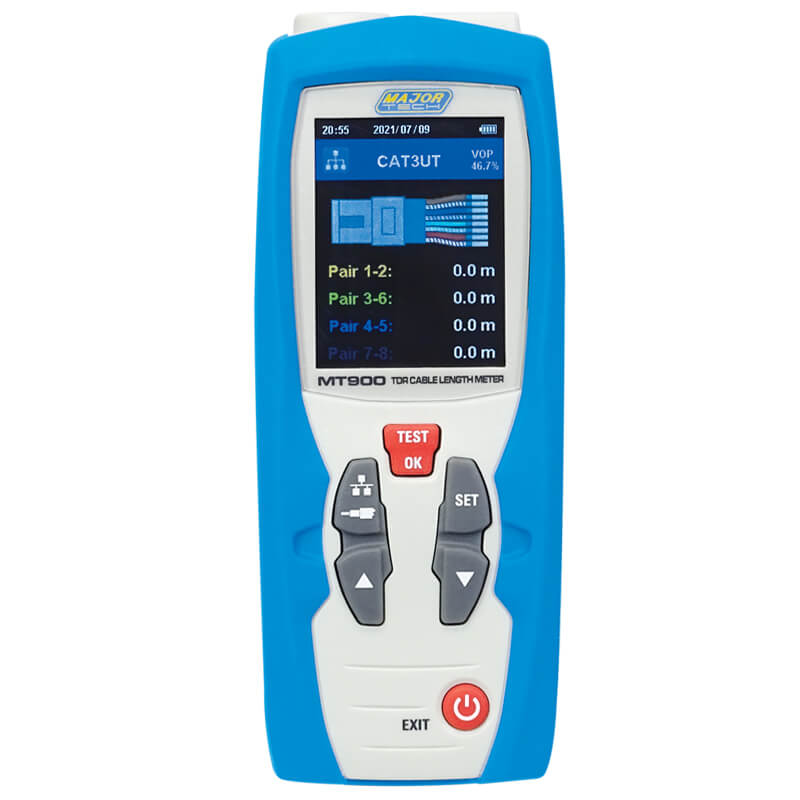

Major Tech TDR Cable Length Meter – MT900

Accurately measure cable lengths and locate faults with the Major Tech TDR Cable Length Meter (MT900). Engineered for telecommunication technicians, electrical contractors, and network engineers, this Time-Domain Reflectometer (TDR) measures copper cables up to 3.0km. Featuring a 2.4-inch TFT color screen, pre-programmed standard cable libraries, and Velocity of Propagation (V.O.P.) measurement capabilities, it provides rapid, high-accuracy diagnostics for cable installation and maintenance.

Key Features:

• Extended Measurement Range: Measures copper cable lengths up to 3.0km with high accuracy and fast reflection diagnostics.

• Pre-Loaded Cable Library: Comes built-in with a library of 20 standard cable types for rapid setup.

• V.O.P. Measurement: Accurately measures the Velocity of Propagation (V.O.P.) of a sample cable to customize measurement accuracy.

• Auto-Sensitivity & Matching: Features auto-sensitivity, auto-zero, and auto-ranging for precise matching across a wide variety of cable types with only V.O.P. settings required.

• Smart Impedance Control: Automatic output impedance and range control optimize signal reflection accuracy.

• Internal Data Storage: Stores up to 99 internal memory locations for recording test data and future analysis.

• Vivid Color Display: Equipped with a clear 2.4-inch TFT color LCD screen for displaying graphical trace readings and length calculations.

Detailed Description:

The Major Tech MT900 utilizes Time-Domain Reflectometry (TDR) technology to calculate cable length and identify open or short circuits along copper wiring runs. Its intuitive interface and built-in cable library allow operators to perform quick diagnostics without requiring extensive manual calculations.

With automated impedance matching and auto-sensitivity tuning, the MT900 simplifies field testing on data, telephony, coaxial, and power cables, delivering reliable measurements directly to its high-contrast color screen.

Technical Specifications
