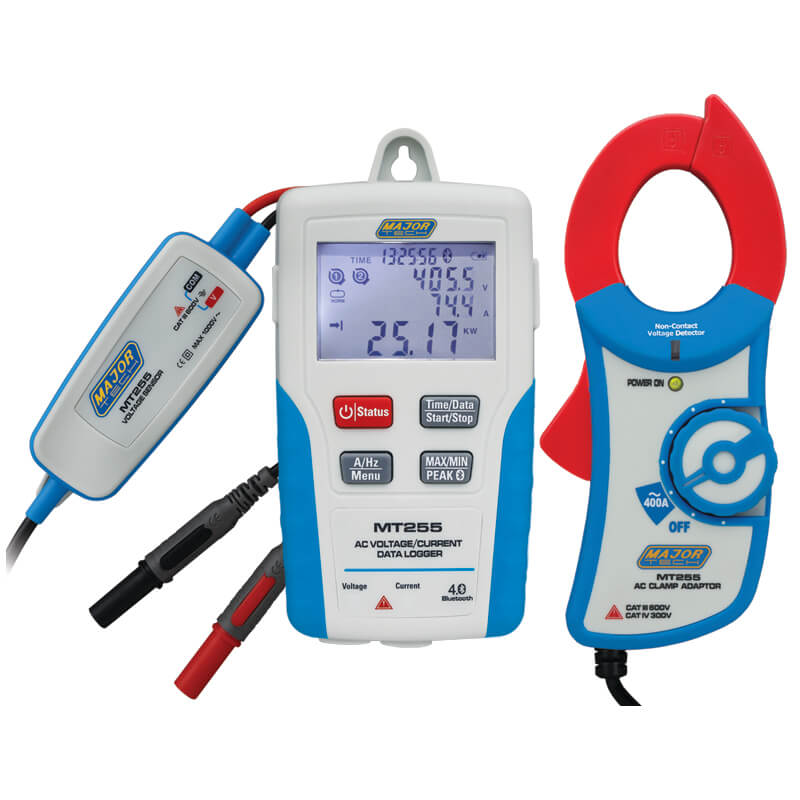

Major Tech TRMS AC Power Data Logger – MT255

Major Tech TRMS AC Power Data Logger – MT255

R 4,963.00
R 4,963.00
Sale Sold out
Shipping calculated at checkout.

Perform comprehensive power audits and track real-time energy parameters with the Major Tech TRMS AC Power Data Logger (MT255). Purpose-built for electrical engineers, energy auditors, and facility managers, this logging instrument records vital electrical parameters including AC Voltage, AC Current, Frequency (Hz), Active Power (kW), Apparent Power (kVA), Power Factor, and Active Energy (kWh). Equipped with Bluetooth app integration, customizable recording modes, and a back-mounted magnet, it delivers reliable long-term diagnostic tracking.

Key Features:

  • Comprehensive Power Metrics: Records AC Voltage, AC Current, Hz, Active Power (kW), Apparent Power (kVA), Power Factor, and Active Energy (kWh).

  • Wireless App & PC Integration: Connects via Bluetooth to the Meter-X app for real-time monitoring and allows seamless report transfers via the app or PC interface.

  • Flexible Recording & Storage: Offers three recording modes (Interval, Trigger, Capture) and two storage modes providing a total memory capacity of 25,350 spaces.

  • Extended Battery & Power Options: Operates up to approximately 72 hours on battery power (without a 240V power supply connection).

  • Enhanced Safety & Mounting: Features a clamp adaptor equipped with an NCV detector, magnets on the back for easy attachment to metal panels, and a flashing LCD alert system.

  • Smart Power Management: Includes automatic shutdown after 10 minutes of inactivity when not actively recording.

Detailed Description:

The Major Tech MT255 provides continuous diagnostic oversight for single-phase electrical circuits and commercial load testing. Featuring a large backlit LCD screen, technicians can monitor real-time measurements in dark enclosures while logging data concurrently.

With flexible data reporting options via PC or mobile app, the MT255 streamlines energy efficiency evaluations, peak load identification, and voltage stability checks.

Technical Specifications

Feature / Attribute Specification
Brand Major Tech
Model / SKU MT255
Product Type TRMS AC Power Data Logger
Logged Parameters AC Voltage, AC Current, Hz, Active Power (kW), Apparent Power (kVA), Power Factor, Active Energy (kWh)
Memory Capacity 25,350 total storage spaces across 2 storage modes
Recording Modes Interval, Trigger, Capture
Wireless Connectivity Bluetooth integration with Meter-X App
Display Large Backlit LCD with Real-Time Measurements
Battery Life Approx. 72 Hours (Without 240V Power Supply)
Special Functions NCV Detector on Clamp Adaptor, Magnetic Backing, Flashing LCD Alert, Auto Shutdown (10 mins)
Target Applications Energy Audits, Load Monitoring, Commercial Power Diagnostics

Note: FREE Delivery does not apply, please make arrangements prior to collecting in store.

Shipping: Allow For 1 - 3 Business Days Before Shipping.
