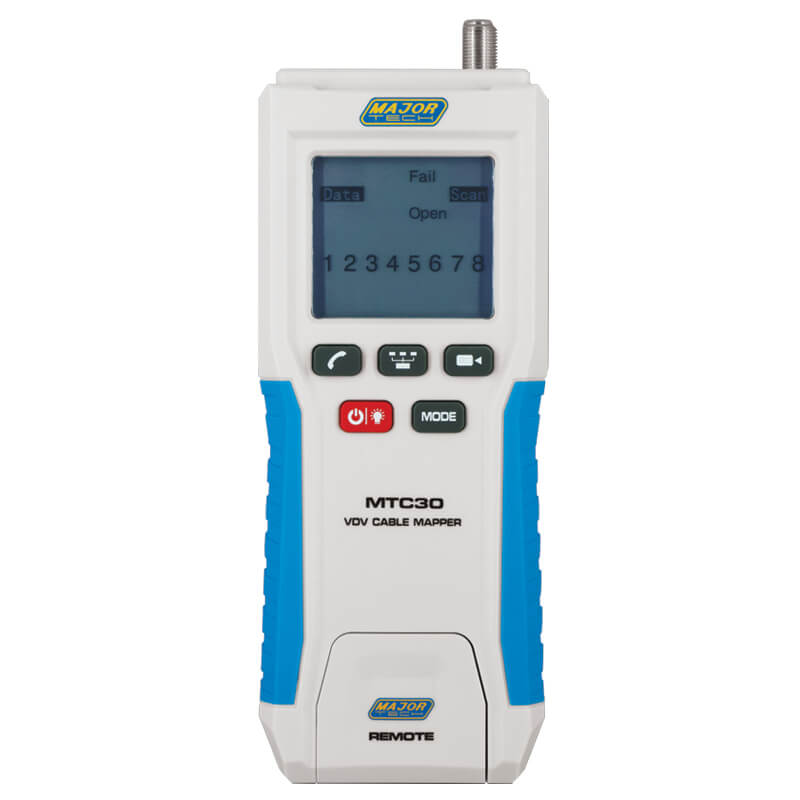

Major Tech Voice Data Video Cable Mapper – MTC30

Major Tech Voice Data Video Cable Mapper – MTC30

R 1,443.00
R 1,443.00
Sale Sold out
Shipping calculated at checkout.

Map, test, and troubleshoot low-voltage cabling systems with the Major Tech Voice Data Video Cable Mapper (MTC30). Engineered for network installers, telecom technicians, and security contractors, this multi-functional cable mapper evaluates Data (RJ45), Phone (RJ11/RJ12), and Video (coax F-connector) terminated lines. Featuring cable length measurement up to 305m, multi-remote port mapping, and comprehensive wiremap fault detection, it streamlines complex cabling audits and network drops.

Key Features:

  • Triple-Format Cable Testing: Tests Data (RJ45), Phone (RJ11/RJ12), and Video (coaxial F-connector) terminated cables with clear wiremap results.

  • Location Remote Identification: Includes 5 location remotes of each connector type to map and ID multiple cable runs in a single step.

  • Cable Length Measurement: Accurately calculates cable run length up to 305m.

  • Comprehensive Fault Detection: Tests for Open, Short, Miswire, or Split-Pair wiring configuration errors.

  • Tone Generator Tracing: Built-in multi-style tone generator traces cables, individual wire pairs, and conductor wires (compatible with optional MTC40 probe).

  • Safety & Hardware Features: Features voltage warnings, shielded cable detection, a clip-in detachable remote, auto power-off, and low battery indication.

Detailed Description:

The Major Tech MTC30 combines multi-media line testing and port identification into an all-in-one diagnostic solution. Its large backlit LCD screen displays precise wiremap pinouts, enabling fast troubleshooting of patch panels, telephone distribution frames, and CCTV lines.

Equipped with detachable remotes and active voltage detection to protect the internal circuitry against energized lines, the MTC30 provides reliable, field-ready performance for telecom, AV, and structured cabling installations.

Technical Specifications

Feature / Attribute Specification
Brand Major Tech
Model / SKU MTC30
Product Type Voice Data Video (VDV) Cable Mapper
Supported Connectors RJ45 (Data), RJ11/RJ12 (Phone), Coax F-Connector (Video)
Max Length Measurement Up to 305m
Fault Diagnostics Open, Short, Miswire, Split-Pair
Location Remotes 5 x Data (RJ45), 5 x Phone (RJ11/12), 5 x Video (F-Connector)
Display Backlit LCD Screen (Wiremap & Test Results)
Tone Generator Multi-Style Tone Generator (Compatible with MTC40)
Special Functions Voltage Warning, Shielded Detection, Detachable Remote, Auto Power Off
Target Applications Telecom Installations, Structured Cabling Audits, CCTV & AV Maintenance
